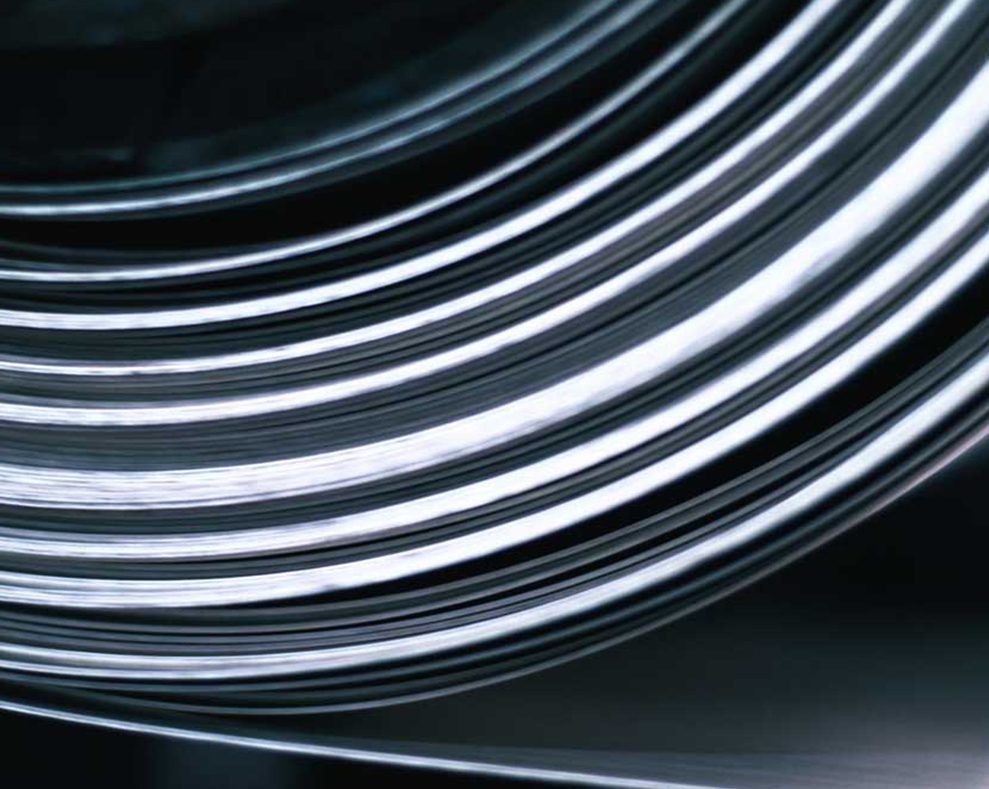

Magnesium Engineering Plate and Sheet
Vulcan Specialty Products Rolled Metals: The world’s largest magnesium alloy plate, sheet, and coil producer.
Vulcan Specialty Products Rolled Metals is the world’s largest, fully integrated magnesium alloy plate, sheet, and coil facility. Located in Madison, Illinois, USA, Vulcan Specialty Products Rolled Metals operates four rolling mills with a capacity of 10,000 metric tons per year.
This facility’s exceptional capabilities stem from its comprehensive integration, encompassing every stage of magnesium alloy production, from casting to rolling and finishing. This integrated approach ensures seamless control over the entire manufacturing process, resulting in consistently high-quality products.
Vulcan Specialty Products Rolled Metal’s products fall into three categories: Spec Grade Heavy Gauge, Spec Grade Light Gauge, and Ultra Thin Gauge. Below is a summary of the product dimensions available in each category:
Specifications
Heavy grade
Max width
60″ (1524 mm)
Max length
240″ (6100 mm)
Gauge ranges
.080″-3″ (2.03 mm–76.2 mm)
Tempers available
O-temper and H24
AMS spec for H24
AMS 4377
AMS spec for O-temper
AMS 4375
ASTM spec for O or H24
ASTM B90/QQ-M–44B
Light grade
Max width
48″ (1219 mm)
Max length
240″ (6100 mm)
Gauge ranges
.040″0.079″ (1 mm–2 mm)
Tempers available
O-temper and H24
AMS spec for H24
AMS 4377
AMS spec for O-temper
AMS 4375
ASTM spec for O or H24
ASTM B90/QQ-M–44B
Heavy gauge roll plate
Thickness
Thickness: 0.25″ (6.35 mm) to 10″ (254 mm)
Maximum width
72″ (1828 mm)
Maximum length
240″ (6100 mm)
Thin gauge sheet plate
Sizes
.249” (6.35 mm) to .040” (1 mm)
Maximum width
60” (1524 mm)
Maximum length
240” (6100 mm)
Coil also available in these gauges
